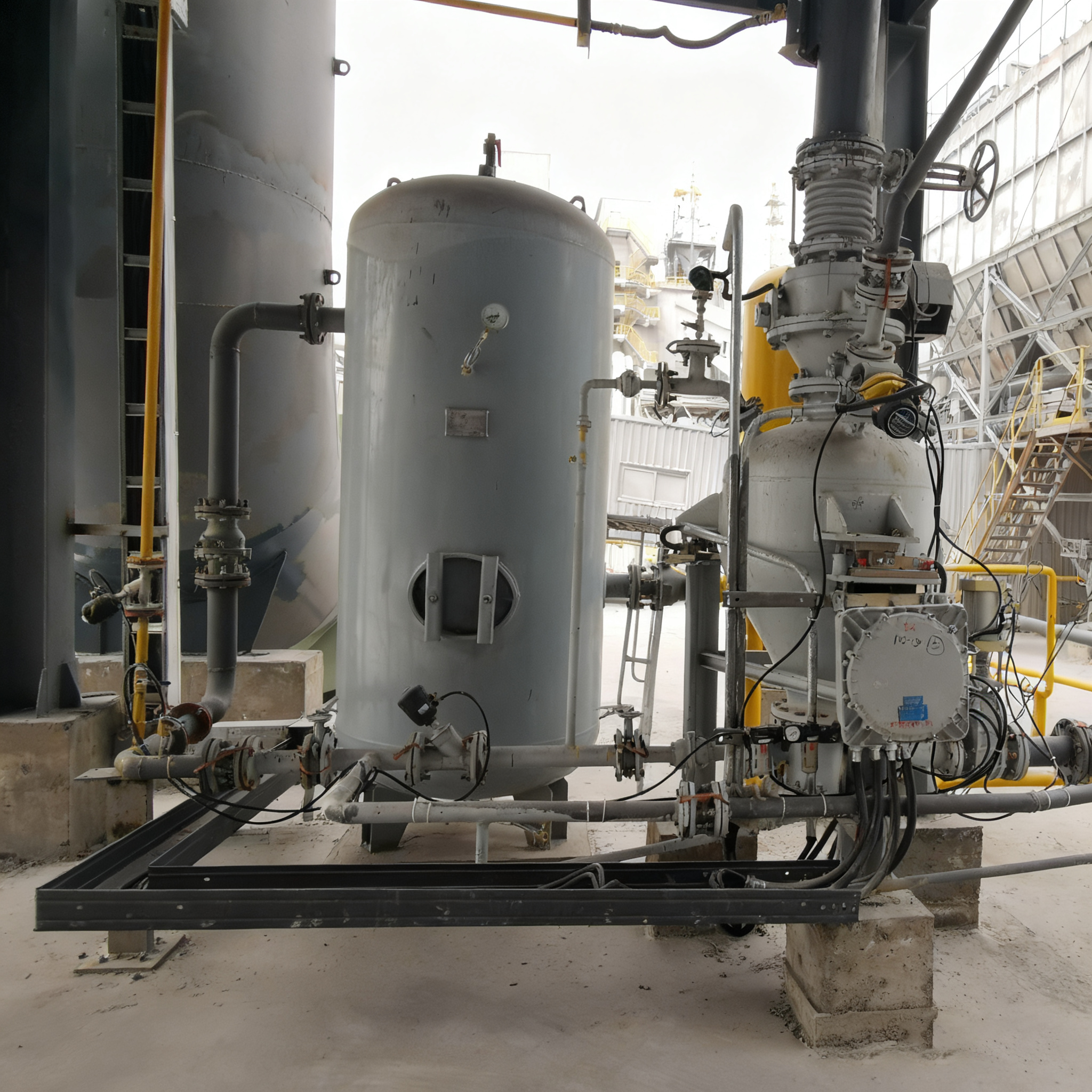

Fly Ash Dense Phase Bin Pump Pneumatic Conveying Silo Pump – Power Plant Pneumatic Conveying Equipment

Brand Name : Hengcheng

Model Number : PCD08/M, PCD10/M, PCD12/M, PCD14/M,PCD18/N,PCD20/N,PCD22/N,PCD24/H PCD26/H PCD28/H PCD30/H

Certification : ISO CE

Place of Origin : China,Hefei

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5 sets\month

Delivery Time : 120 days

Packaging Details : Standard shipping packaging

Name : Powder Conveying Silo Pump

Equipment Type : Pneumatic Conveying Silo Pump (Dense Phase)

Pump Body Volume : 0.35m³, 1.32m³, 2.15m³, Customizable

Pump Body Diameter : 800mm, 1200mm, 1400mm - 2400mm

Material Density : Light (< 600 kg/m³);Medium (600 - 1200 kg/m³);Heavy (> 1200 kg/m³)

Applications : Power plant fly ash, cement, raw materials, mineral powder, etc

Transport medium : powder

Control System : PLC

Purpose : Transporting powdered materials

Valve Configuration : The feed valve uses a conical valve, and the discharge valve uses a wear-resistant ball valve or dome valve, including an exhaust valve/pressure relief valve

Contact Now

Driving Operational Excellence Across Industries

Our dense phase conveying systems are engineered to deliver critical operational advantages in your sector:

• Power Industry: Transform fly ash from a waste challenge into a manageable resource. Our systems ensure reliable, dust-free transfer from hoppers to silos, mitigating environmental liability and enabling recycling revenue.
• Cement Industry: Eliminate costly production stoppages. We prevent consolidation and plugging in cement, raw meal, and additive conveying, ensuring continuous flow from preheater to packing plant for maximum kiln uptime.
• Chemical Industry: Handle diverse materials with absolute integrity. From hygroscopic fertilizers to explosive powders, our sealed, corrosion-resistant systems prevent cross-contamination and ensure operator safety.
• Grain Processing: Protect your product and brand. Our gentle, contamination-free conveying preserves grain integrity and meets stringent food safety standards (HACCP, FDA) from intake to processing.
• Building Materials: Power your production lines relentlessly. Designed for high-volume transfer of abrasive gypsum, lime, and sand, these systems deliver the reliability required for 24/7 construction materials production.

Fly Ash Dense Phase Bin Pump Pneumatic Conveying Silo Pump – Power Plant Pneumatic Conveying Equipment
Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m³) Model PCD24/H PCD26/H PCD28/H PCD30/H Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 50~80 60~90 65~110 80~130 200 20
Fly Ash 0.75 75~125 85~130 95~160 125~190 200 20
Limestone Powder/Mineral Powder 0.8 80~130 90~140 100~170 130~200 200 20
Cement/Raw Meal 1 100~150 115~175 130~215 165~260 200 20


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m3) Model PCD24/L PCD26/L PCD28/L PCD30/L Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 20~40 25~45 30~55 45~65 1000 25
Fly Ash 0.75 35~60 45~65 45~80 65~95 1000 25
Limestone Powder/Mineral Powder 0.8 40~65 45~70 50~85 70~100 1000 25
Cement/Raw Meal 1 50~80 55~90 65~110 90~120 1000 25

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density(t/m³) Model PCD18/N PCD20/N PCD20/N Reference Conveying Distance
Specification 5.0~6.7m³ 7.0~10.0m³ 10.0~15.0m³ Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 12~20 16~32 25~50 500 30
Fly Ash 0.75 18~32 25~48 35~70 50
Limestone Powder/Mineral Powder 0.8 20~35 26~51 38~75 500 30
Cement/Raw Meal 1.0 24~42 32~65 48~95 500 30
Silicon Powder 1.2 28~50 40~75 55~115 500 30

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Material Bulk Density(t/m³) Model PCD08/M PCD10/M PCD12/M PCD14/M Reference Conveying Distance
Specification 0.2~0.5m³ 0.6~1.6m³ 1.5~2.5m³ 2.5~5.0m³ Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 0.5~1.8 1.5~5.5 5.0~9.0 8.0~18.0 100 20
Fly Ash 0.75 0.9~2.8 2.5~8.5 7.0~14.0 12.0~27.0 100 20
Limestone Powder/Mineral Powder 0.8 1.0~3.0 3.0~9.0 8.0~15.0 12.0~28.0 100 20
Cement/Raw Meal 1.0 1.2~3.5 3.5~11.5 10.0~18.0 16.0~36.0 100 20
Silicon Powder 1.2 1.5~4.0 4.5~13.5 12.0~20.0 19.0~43.0 100 20

Fly Ash Dense Phase Bin Pump Pneumatic Conveying Silo Pump – Power Plant Pneumatic Conveying EquipmentFly Ash Dense Phase Bin Pump Pneumatic Conveying Silo Pump – Power Plant Pneumatic Conveying Equipment

Engineered for a Lower Total Cost of Operation

Our systems deliver measurable financial and operational returns that protect your investment:

• Directly Reduce Energy Consumption: Achieve 20-40% lower operational costs compared to mechanical conveyors, slashing your energy bills and carbon footprint without compromising on throughput.
• Guarantee Regulatory Compliance & Safety: A hermetically sealed system


Why Choose Our System?
Superior Reliability Backed by Innovation
• Patented pressure vessel structure – delivers 20% longer service life than industry counterparts
• Intelligent auto pressure regulation – ensures consistent material flow without pulsation or blockages
Intuitive & Connected Smart Operation
• PLC + touchscreen control panel – pre-storable recipes for quick switching between different materials
• 24/7 remote monitoring – real-time performance tracking and data analysis via mobile app or PC platform
Compliant & Trusted for ASEAN Markets
• CE & ATEX dual certification – fully meets regional safety and environmental standards
• Localized technical support – tailored to ASEAN industrial requirements and regulations


Streamlined 4-Step Order & Implementation Process
Detailed Consultation – Share your material specifications, throughput, and on-site constraints
Custom Solution Design – Receive personalized drawing layouts, technical proposals, and transparent quotes
Factory Acceptance Test (FAT) – Witness and verify equipment performance before shipment
Comprehensive Installation Support – Choose between on-site guidance or remote debugging assistance
